BAA VSS PROGRAMMES AND CHARTS

The Binocular Programme



BAAVSS Charts

The section publishes detailed charts with labelled sequence comparisons.

All reasonably well drawn and specifically all charts numbered xxx.xx are now available here. They have been listed by constellation and the following information may assist in deciphering the particular chart reference. Where a chart is named UU Aql 9d 002.02, for example, the star designation is followed by the constellation (except in the case of objects such as Markarian509). Where applicable, the chart size is then shown. In this case it is a 9 degree chart, but other examples might be 20m for a 20 minute chart. Where there is only one chart for a particular variable (as with Binocular Charts), the size is not given. Next comes the standard notation adopted for more modern VSS charts i.e. xxx.xx. If this notation is not given and the chart only has a date, this is not given. It will be necessary to look at the chart itself to see the date. In addition, where a chart has more than one Section variable on it, each chart is now listed separately. (This has also been done to keep the chart name to a manageable length).

Observers are advised to report full estimates using the latest charts because such information can be useful during analyses, or if the sequence is revised at a later date.

Paper copies of all “VSS” charts are available from the Chart Secretary, John Toone,  Hillside View, 17 Ashdale Road, Cressage, Shrewsbury, SY5 6DT.

I hope this will enable observers to keep up to date more easily with the latest version of Section charts which will continue to be announced via the Circulars and electronically via BAAVSS-alert.

This catalogue (V14.1 PDF) lists all of the stars on the Section's Binocular Variable Star Programme .

Roger Pickard, Director



Alert stars are marked with an '*'. Please telephone Gary Poyner or the Director immediately for the following...

* Alert if in outburst.
** Alert if fading.

T/B means that the object is monitored as both a Telescopic and Binocular programme star.
R indicates that the object is part of the Recurrent Objects Program.

It should also be pointed out that these charts are intended for visual observers and they are not suitable for those intending to carry out photometry, either with a CCD or a DSLR, as the quoted comparison star magnitudes have been rounded to the whole tenth of a magnitude. Those wishing to carry out photometry and requiring more accurate comparison star data should contact the Director.

The following abbreviations are used in the 'Type' column:

BLLac BL Lac object

DQ DQ Her type object (Polar)

E Eclipsing binary [EA - Algol type, EB - Beta Lyr type, EW - W UMa type]

Gal Galaxy (with variable nucleus)
GCas Gamma Cas type eruptive variable
In  Irregular nebular variable [Ina - hot, Inb - cool]
L Red irregular pulsating variable [Lb - giant, Lc - supergiant]
M Mira type pulsating variable
N Nova [Na - fast, Nb - slow, Nc - very slow, Nr - recurrent]
NL Nova-like stars
QSO Quasi-stellar object (Quasar)
RCB R CrB type eruptive variable
RV RV Tau type pulsating variable [RVa - constant mean mag, RVb - varying mean mag]

SDor S Dor type eruptive variable
SR Semiregular pulsating variable [SRa - stable periodicity, SRb - loose periodicity, SRc - supergiant, SRd - yellow]

UG U Gem type cataclysmic variable (dwarf nova) [UGSS - SS Cyg type, UGSU - SU UMa type, UGZ - Z Cam type, UGWZ - WZ Sge type]

UV UV Cet type (flare star)
X X-ray binary [Xp - X-ray pulsar]
ZAnd Z And type cataclysmic binary (symbiotic variable)

The 'Max' and 'Min' magnitudes are all visual except where the 'Min' is followed by a 'p', in which case they are both photographic.

In the Eclipsing Binary Program list, the 'D' column gives the duration of the eclipse in hours. This is only well-defined for Algol type (EA) stars. 'EB' or 'EW' in this column indicates that the star is a Beta Lyrae or W UMa star.

The 'Chart' column gives the identifier or date of the latest version of the chart. A star name in this column indicates that the star is included on a combined chart under the name of another star. Where there is no date entered, the chart is currently being prepared.

If a star is highlighted, the link will take you directly to the chart.

See also the Binocular Priority List



The Binocular Programme

Star   RA(2000)Dec Type Range Period Chart
RS And 23 55 +48 38 SRa 7 9.1 136 1977Sep10
SU And 00 05 +43 33 Lc 8 8.5   1977Sep10
TZ And 23 51 +47 31 SRb 7.6 9   1977Sep10
AQ And 00 28 +35 35 SR 8 8.9 346 303.01
BZ And 00 38 +45 36 Lb 7.5 8.4   304.01
EG And 00 45 +40 41 ZAnd 7.1 7.8   72.02

V Aql 19 04 -05 41 SRb 6.6 8.4 353 026.04
V450 Aql 19 34 +05 28 SRb 6.3 6.7 64 070.02

V Ari 02 15 +12 14 SRb 7.8 8.8 77? 1984Oct26

UU Aur 06 37 +38 27 SRb 5.1 6.8 234 230.02
AB Aur 04 56 +30 33 Ina 6.7 8.4   301.01
Psi1 Aur 06 25 +49 17 Lc 4.8 5.7   1973Jul14
eps Aur 05 02 +43 49 EA/GS 2.9V 3.8V 9892 316.01

W Boo 14 43 +26 32 SRb? 4.7 5.4 450? Undated
RV Boo 14 39 +32 32 SRb 7.5 8.8 137 104.02
RW Boo 14 41 +31 34 SRb 7.4 8.9 209 104.02
RX Boo 14 24 +25 42 SRb 6.9 9.1 160 219.02

U Cam 03 42 +62 39 SRb 7.7 8.8   100.02
RY Cam 04 31 +64 26 SRb 7.3 9.4 136 1972Jul29
ST Cam 04 51 +68 10 SRb 6 8 300? 111.02
UV Cam 04 06 +61 48 SRb 7.5 8.1 294? 1972Jul29
ZZ Cam 04 18 +62 21 Lb 7.1 7.9   1972Jul29

X Cnc 08 55 +17 04 SRb 5.6 7.5 195 231.02
RS Cnc 09 11 +30 58 SRc 5.1 7 120? 269.01
RT Cnc 08 58 +10 51 SRb 7.1 8.6 60? 311.01

V CVn 13 20 +45 32 SRa 6.5 8.6 192 214.02
Y CVn 12 45 +45 26 SRb 5.2 6.6 157 215.02
TU CVn 12 55 +47 12 SRb 5.6 6.6 50 215.02

W CMa 07 08 -11 55 Lb 6.4 7.9   213.02

WZ Cas 00 01 +60 21 SRb 6.9 8.5 186 323.01
V391 Cas 01 57 +70 12 Lb 7.6 8.4   337.01
V393 Cas 02 03 +71 18 SRa 7 8 393 337.01
V465 Cas 01 18 +57 48 SRb 6.2 7.8 60 233.02
Gamma Cas 00 57 +60 43 GCAS 1.6 3   064.01
Rho Cas 23 54 +57 29 SRd 4.1 6.2 320 064.01

W Cep 22 37 +58 26 SRc 7 9.2   312.02
RU Cep 01 21 +85 08 SRd 8.2 9.8 109 332.01
RW Cep 22 23 +55 58 SRd 6.2 7.6 346? 312.02
SS Cep 03 50 +80 19 SRb 6.7 7.8 90 315.01
AR Cep 22 52 +85 03 SRb 7 7.9   332.01
DM Cep 22 08 +72 46 Lb 6.9 8.6   Undated
FZ Cep 21 20 +55 27 SR 7 7.6   302.01
Mu Cep 21 44 +58 47 SRc 3.4 5.1 730 112.02

RR CrB 15 41 +38 33 SRb 7.1 8.6 61 220.02
RS CrB 15 59 +36 01 SRa 7.0 10.2 332 220.02

W Cyg 21 36 +45 22 SRb 5 7.6 131 062.04
RU Cyg 21 41 +54 19 SRa 8 9.4 233 302.01
RV Cyg 21 43 +38 01 SRb 7.1 9.3 263 335.01
TT Cyg 19 41 +32 37 SRb 7.4 8.7 118 227.02
AF Cyg 19 30 +46 09 SRb 6.4 8.4 92 232.02
CH Cyg 19 25 +50 15 ZAnd+SR 5.6 11 97 089.03
V460 Cyg 21 42 +35 31 SRb 5.6 7 180? 336.01
V973 Cyg 19 45 +40 43 SRb 6.2 7 40? 232.02
P Cyg 20 18 +38 02 SDor 3 6   1972Jul29

U Del 20 46 +18 06 SRb 5.6 7.9 110? 228.02
EU Del 20 38 +18 16 SRb 5.8 6.9 60 228.02

RY Dra 12 56 +66 00 SRb? 6 8.2 200? 225.02
TX Dra 16 35 +60 28 SRb 6.6 8.4 78? 106.03
UW Dra 17 58 +54 40 Lb 7 8.2   1974Jul27
UX Dra 19 22 +76 34 SRa? 5.9 7.1 168 1982Nov07
AH Dra 16 48 +57 49 SRb 7 8.7 158 106.03

TU Gem 06 11 +26 01 SRb 7.4 8.3 230 294.01
TV Gem 06 12 +21 52 SRc 6.6 8   294.01
WY Gem 06 12 +23 12 Lc+E? 7.2 7.9   294.01
BU Gem 06 12 +22 55 Lc 5.7 8.1 47? 294.01

X Her 16 03 +47 14 SRb 6.1 7.5 95 223.02
ST Her 15 51 +48 29 SRb 7 8.7 148 223.02
SX Her 16 08 +24 55 SRd 8 9.2 103 113.02
UW Her 17 14 +36 22 SRb 7 8.8 104 107.02

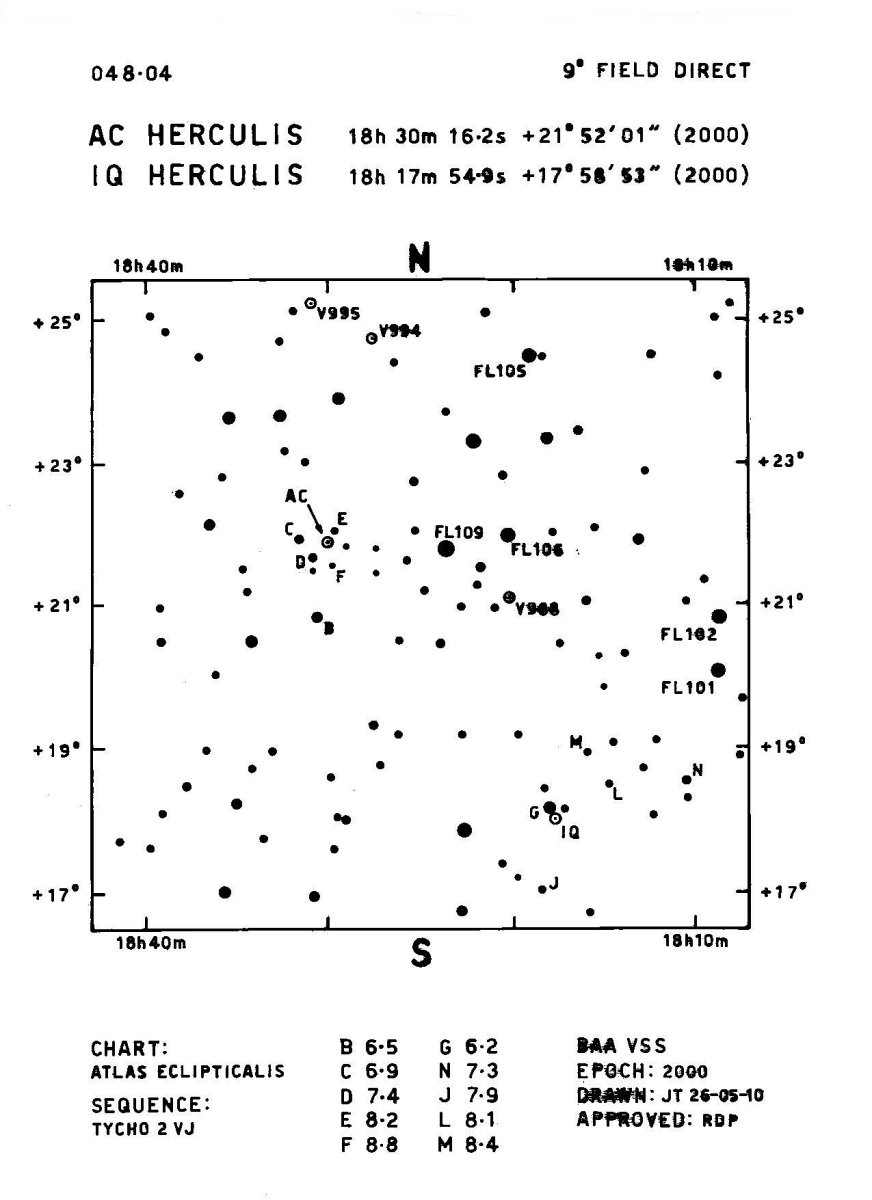

AC Her 18 30 +21 52 RVA 6.8 9 75 048.04
IQ Her 18 18 +17 59 SRb 7 7.5 75 048.04

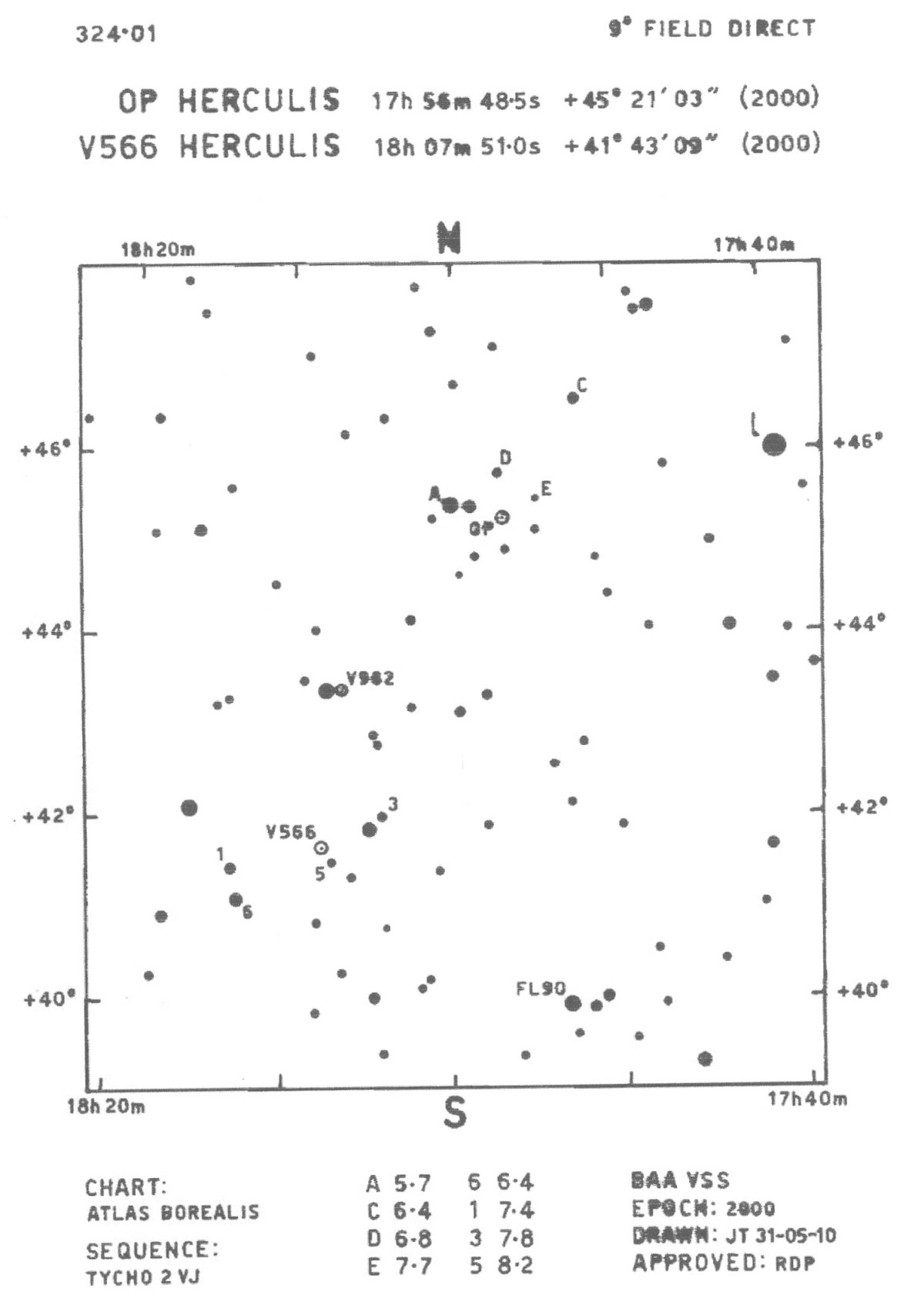

OP Her 17 57 +45 21 SRb 5.9 7.2 120 324.01

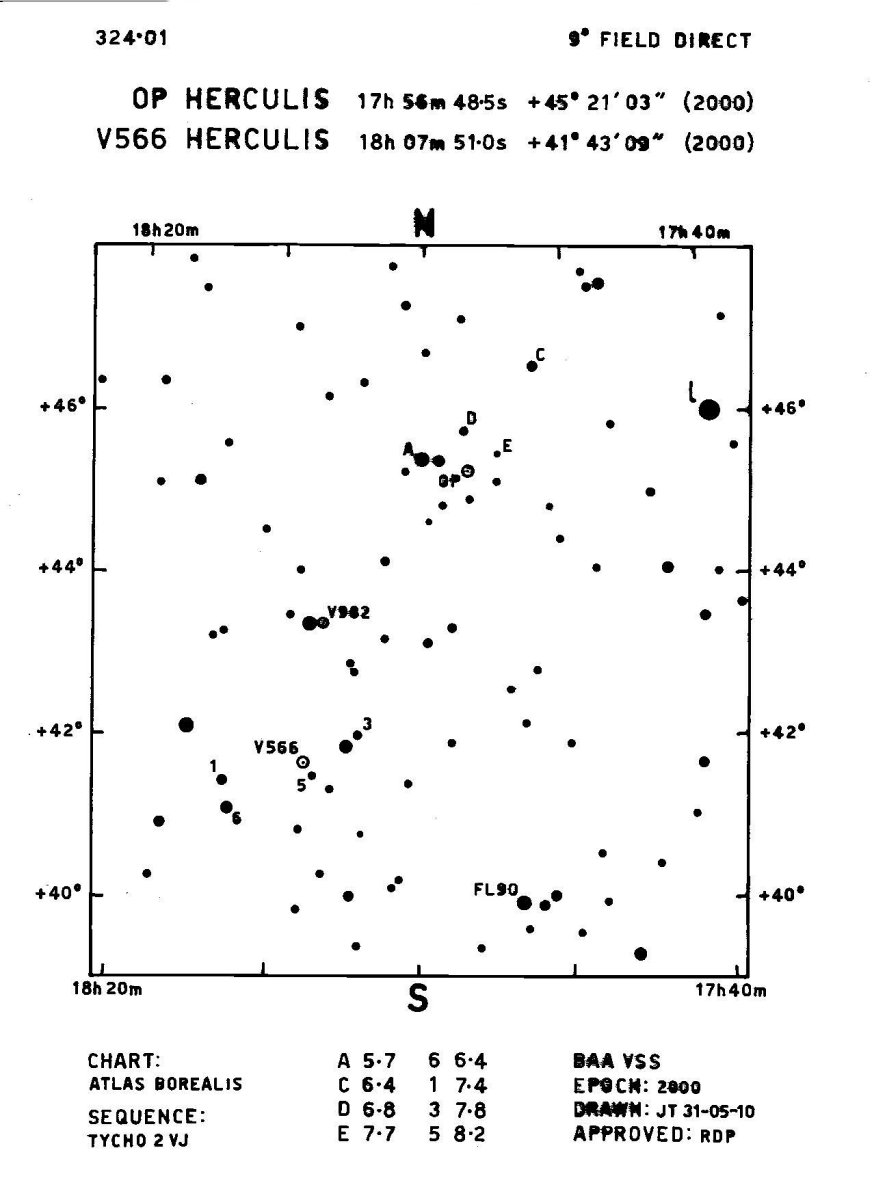

V566 Her 18 08 +41 43 SRb 7.1 7.8 137 324.01
g(30) Her 16 29 +41 53 SRb 4.3 6.3 89 224.02

U Hya 10 38 -13 23 SRb 4.3 6.5 450? 109.02

SX Lac 22 56 +35 12 SRd 7.7 8.7 190 235.02

RX Lep 05 11 -11 51 SRb 5 7.4 60? 110.02

Y Lyn 07 28 +45 59 SRc 6.5 8.4 110 229.02
SV Lyn 08 04 +36 21 SRb 6.6 7.9 70? 108.03
CE Lyn 07 44 +38 50 SR 7.8 8.7 ? 108.03

R Lyr 18 55 +43 57 SRb 3.9 5 46? 330.01
XY Lyr 18 38 +39 40 Lc 5.8 6.4   331.01

U Mon 07 31 -09 47 RVB 5.9 7.9 91 029.04
RV Mon 06 58 +06 10 SRb 6.8 8.6 132 292.01
SX Mon 06 52 +04 46 SR 7.3 8.5 100 292.01

X Oph 18 38 +08 50 M 5.9 9.2 328 099.02

W Ori 05 05 +01 11 SRb 5.9 7.7 212 105.02
BL Ori 06 26 +14 43 Lb 6.3 7.2   211.02
BQ Ori 05 57 +22 50 SR 6.9 8.9 110 295.01

AG Peg 21 51 +12 38 Nc 6 9.4   094.02
GO Peg 22 55 +19 34 Lb 7.1 8.3   103.02

X Per 03 55 +31 03 GCas+Xp 6 7   277.01
SU Per 02 22 +56 36 SRc 7 8.5 533 1974Jan13
AD Per 02 21 +57 00 SRc 7.7 8.4 362 1974Jan13
KK Per 02 10 +56 34 Lc 6.6 7.9   1974Jan13
PR Per 02 22 +57 52 Lc 7.6 8.3   1974Jan13

Z Psc 01 16 +25 46 SRb 7 7.9 144 278.01
TV Psc 00 28 +17 54 SR 4.7 5.6 49 1972Sep09
TX Psc 23 46 +03 29 Lb 4.8 5.8   276.01

R Sct 18 48 -05 42 RVA 4.2 8.6 146 026.04
S Sct 18 50 -07 54 SRb 7 8.2 148 026.04

t4 Ser 15 36 +15 05 SRb 5.9 7.4 100 209.01

Y Tau 05 46 +20 42 SRb 6.5 9.2 242 295.01
TT Tau 04 52 +28 32 SRb 8.1 8.8 166 301.01
BU Tau 03 49 +24 08 GCas 4.8 5.5   1983Oct03

W Tri 02 42 +34 31 SRc 7.5 8.8 108 114.02

Z UMa 11 57 +57 52 SRb 6.2 9.4 196 217.02
RY UMa 12 21 +61 19 SRb 6.7 8.3 310? 217.02
ST UMa 11 28 +45 11 SRb 6 7.6 110? 102.02
TV UMa 11 46 +35 54 SRb 6.8 7.3 42 271.01
VW UMa 10 59 +69 59 SR 6.9 7.7 610 226.02
VY UMa 10 45 +67 25 Lb 5.9 7   226.02

V UMi 13 39 +74 19 SRb 7.2 9.1 72 101.02

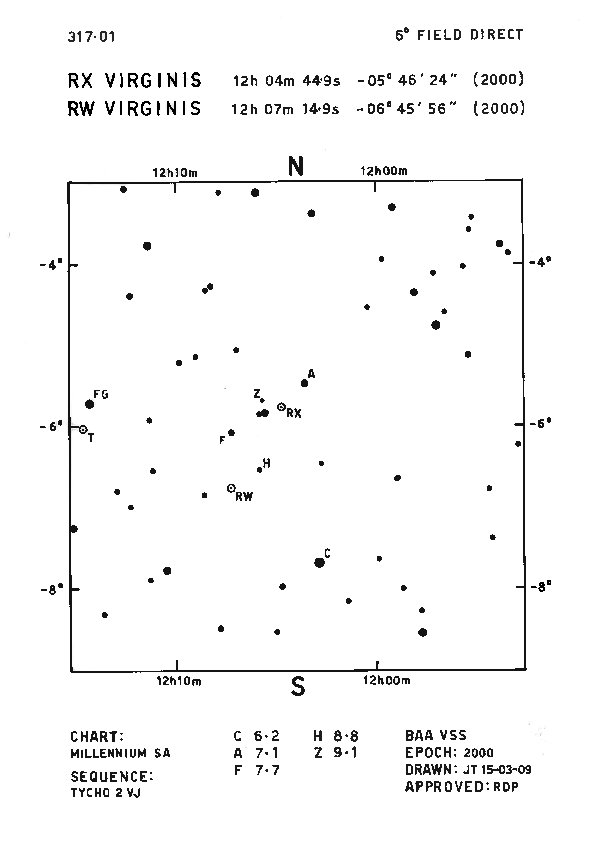

RW Vir 12 07 -06 46 Lb 6.7 7.6   317.01
RX Vir 12 05 -05 46 SRd? 8 8.6 200? 317.01
SS Vir 12 25 +00 48 SRa 6 9.6 364 097.02
SW Vir 13 14 -02 48 SRb 6.4 8.5 150? 098.02
BK Vir 12 30 +04 25 SRb 7.3 8.8 150? 270.01
